- Two compartments
- Shaft Threads 1/2-20 UNF-2A
- 50 degrees Celsius ambient
- 1081 Design
- Continuous Duty
- Switchless design
- Voltage selection device (dual voltage only)
- Service Factor: 1.3
- RPM: 3450
- 10.6-10.0A 208-230V
- Length without Shaft: 12.99

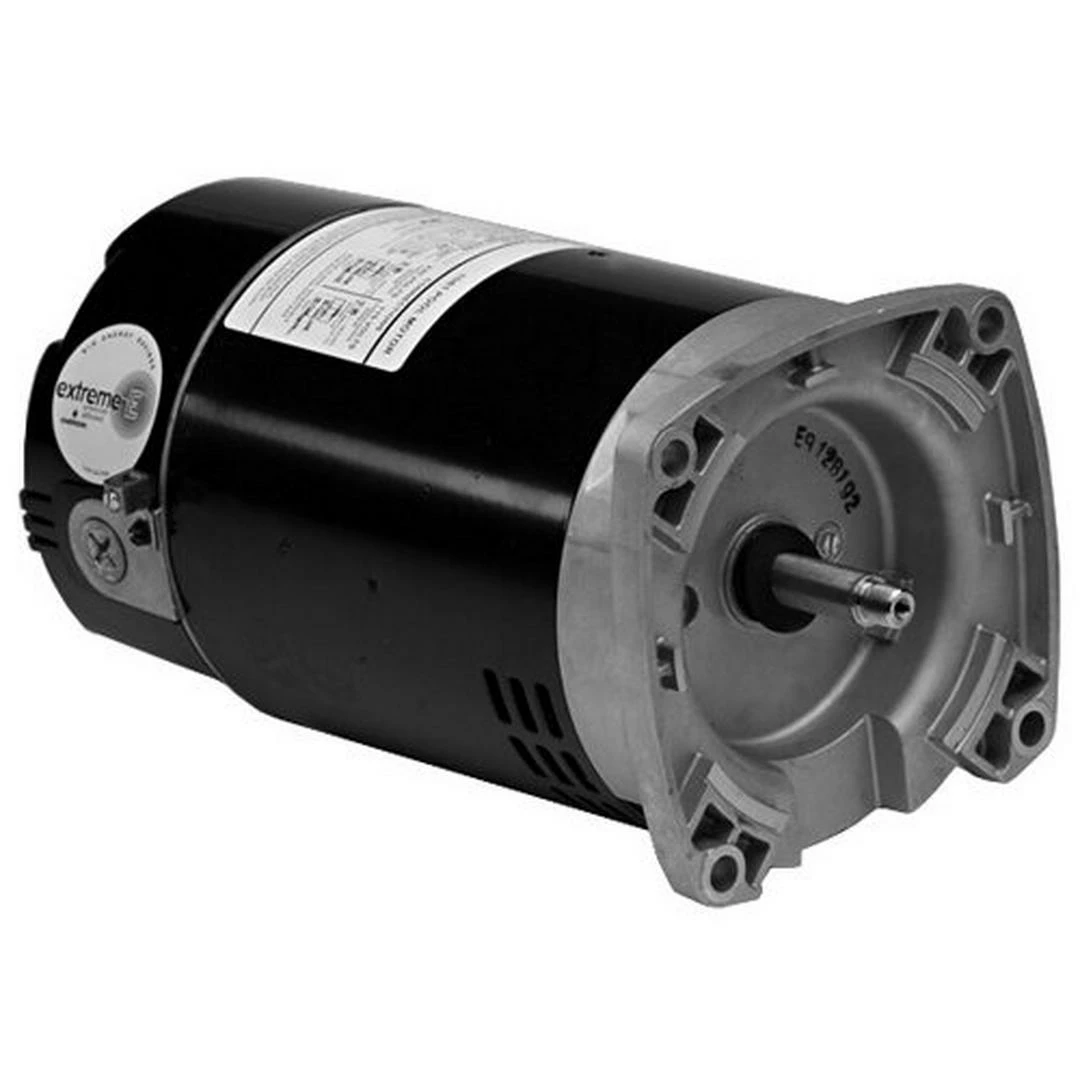

The U.S. Motors Emerson ASB843 Square Flange 2 HP Full Rated 56Y 230V Single Speed Pool and Spa Pump Motor is a powerfully designed replacement motor. Similar to spa and pool replacement motors, the Emerson 56 Y-Frame Motor is a two-compartment model with a voltage selection device, running at 2HP and 230V. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 2 HP rating delivers optimum performance.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.
| Voltage: | 208 – 230V |
| Flange Type: | Square Flange |
| Horsepower: | 2 HP |
| Service Factor: | 1.25 – 1.50 |
| Energy Efficiency: | High Energy Efficiency |
| Pool Type: | In Ground |
| Speed Settings: | Single Speed |
| Motor Frame: | 56Y Frame |
| Voltage: | 240V |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Compatible Pumps: | 011581 |
| Compatible Pumps: | 011515 |
| Compatible Pumps: | 342248 |
| Manufacturer: | U.S. Motors Emerson |
| Product Type: | Pool Pump |
