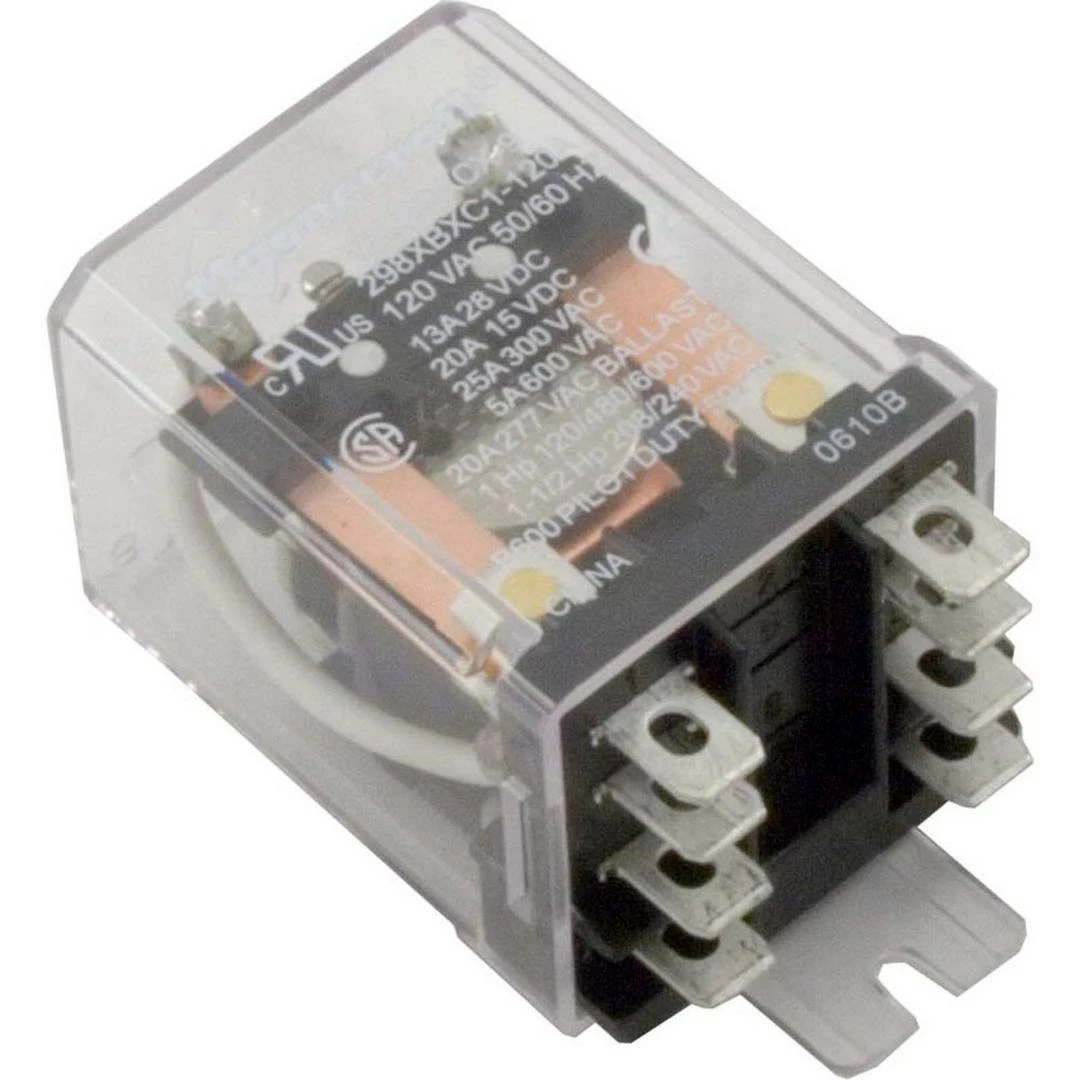

Magnecraft – Ice Cube Style Power Relay, DPDT 8-Pin, 120VAC Coil, 20A

DPDT power relay, ice cube style relay has 8 pins on the bottom, as a plug-in type of relay, with clear plastic case. 120VAC, 28VDC, rated to 20 amps. Double pole, Double throw power relay is used to control power switching on/off for two devices or loads. DPDT relay has pins in positions 1, 3, 4, 6, 7, 9, A, B.

KUHP Series relays are an extension of the KUP product line, offering 20 amp switching capability in a 2 Form C (DPDT) configuration. Clear plastic dustcover enclosed KUHP power relays are equipped with slotted flanges for bracket mounting to a circuit board. Relay is made to specifications by UL, CSA, VDE, RoHS.

General purpose 8-pin ice cube power relay has 8 terminals or QC tabs, 1/4″” standard, to connect push-on spade connectors, or soldered with Silver Cadmium Oxide. Electro-Mechanical power relay used on many spa and hot tub circuit boards, and is made by Potter Brumsfield for Tyco. DPDT 20 amp ice cube relay measures 1.5″” x 1.4″” x 1.9″” tall.
