Hayward – W3AQ-TROL-RJ AquaTrol Above Ground Pool Salt System Return Jet Mounting With Standard Cord

The Hayward AquaTrol Complete Salt System up to 18,000 Gallons is the perfect salt chlorinator to keep your above ground swimming pool clean and clear.

The Hayward AquaTrol RJ Salt Chlorinator is designed for above ground pools up to 18,000 gallons. It installs vertically directly below your existing return jet.
The Hayward W3AQ-TROL-RJ AquaTrol RJ Salt Chlorinator for Above Ground Pools automatically generates pure chlorine from the salt water that passes through the plates inside the cell. With a salt chlorinator, you are still sanitizing with chlorine but it is a more pure form of chlorine. This process of salt chlorination provides soft and silky smooth feeling swimming pool water. Using the AquaTrol RJ Salt Chlorinator provides sanitized safe water and a more comfortable swimming experience.

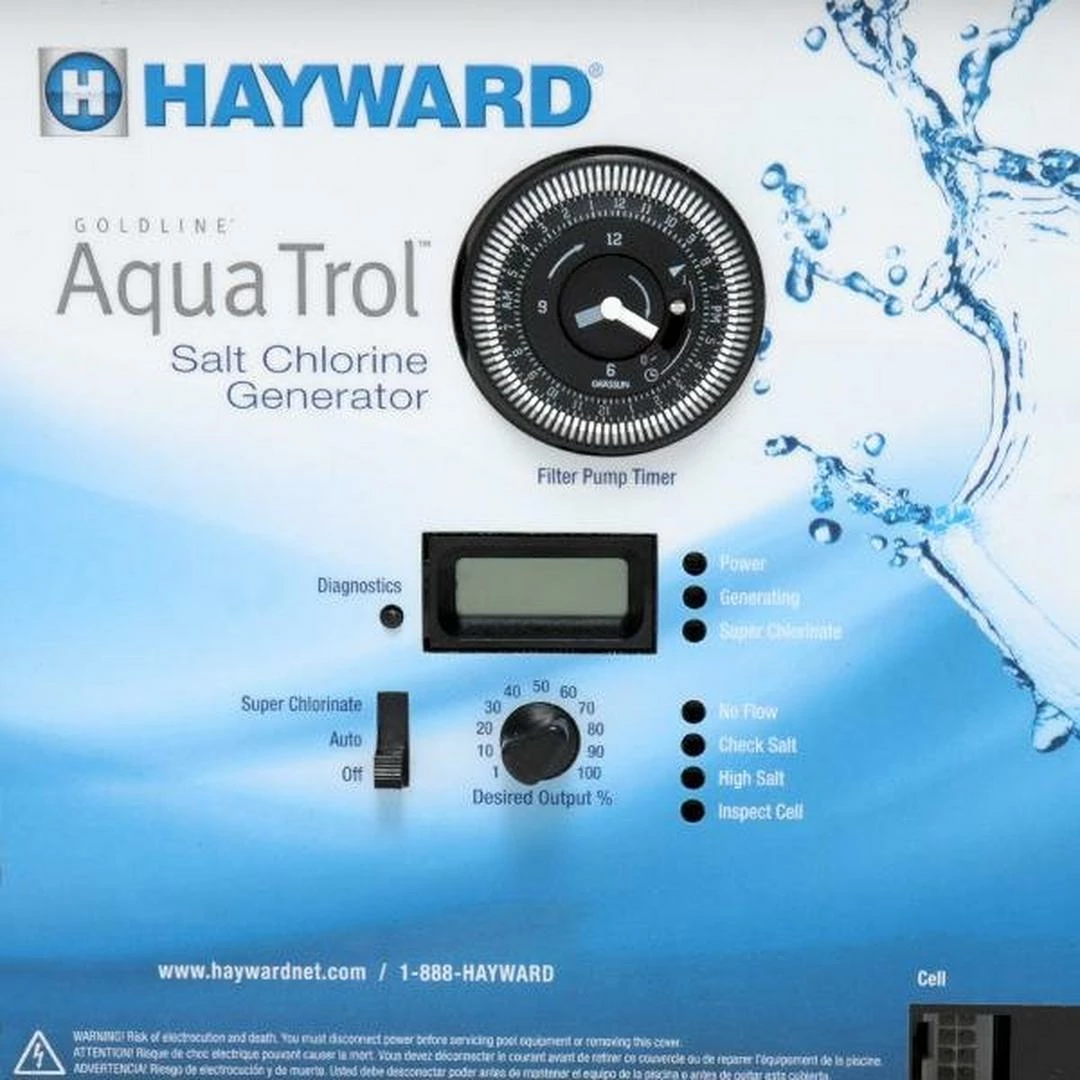

The Hayward AquaTrol RJ salt cell installs vertically directly below the return jet using the right-angle cell mounting adapter. The lower end of the cell attaches using 2″ rigid PVC pipe or 1-1/2″ – 1-1/4″ flexible hose. The Hayward AquaTrol control box has a digital interface with seven diagnostic indicators and an easy-to-read salt display. It features Power, Generating, Super Chlorinate, No Flow, Test Salt Level, High Salt, and Inspect Cell options for understandable updates and evaluations. The control box also features a straight-blade type plug in cord and runs on 120V/15A for efficient operation. With a 24-hour timer that controls pump filtration in 15 minute segments, AquaTrol promises automated convenience for hassle-free pool care.

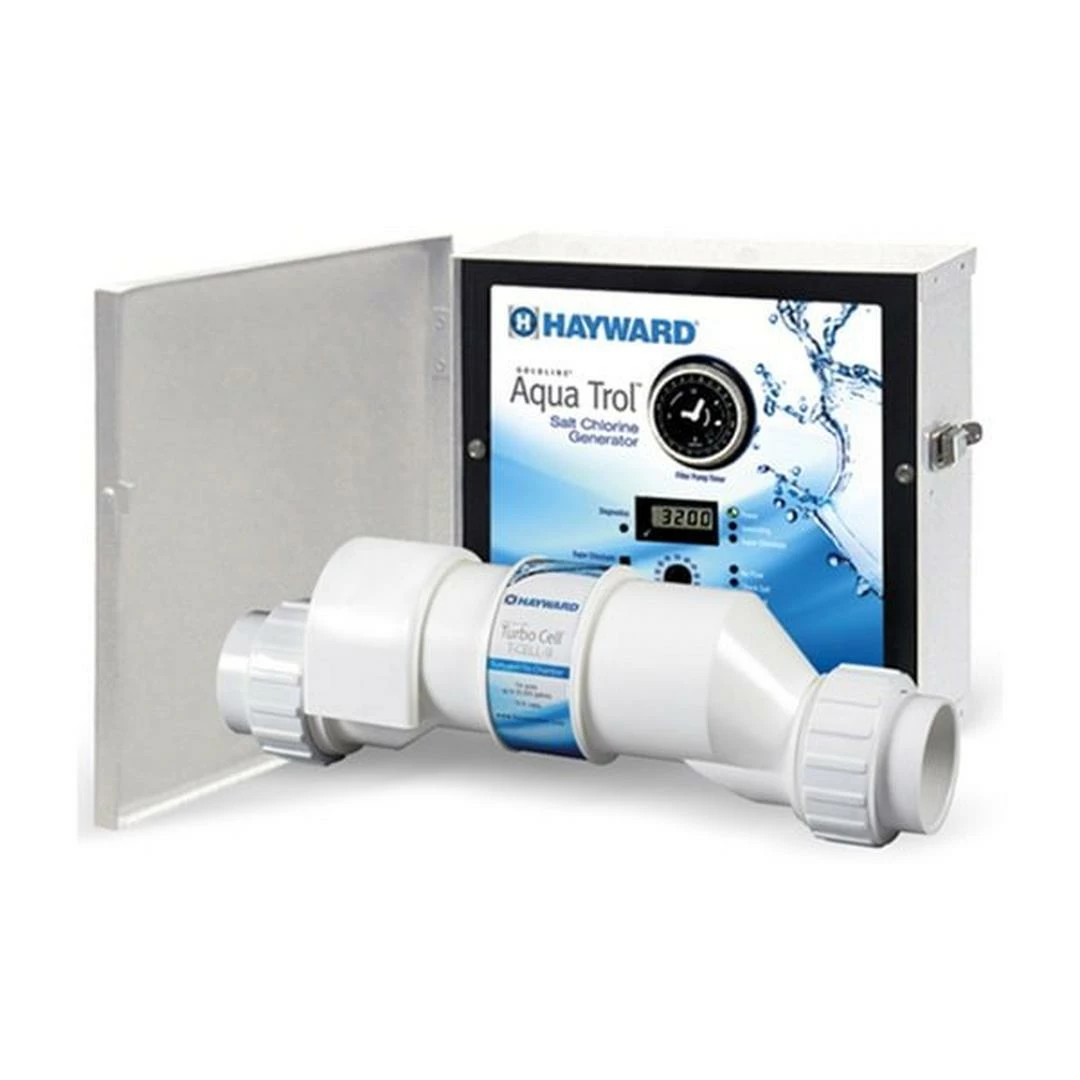

The Hayward AquaTrol RJ comes with everything needed for installation, including the control box, salt cell, union connections and adapters for return jet mounting. A flow sensor is not needed for this model.Note: The W3AQ-TROL-RJ and the W3AQ-TROL-HP use the same owner’s manual. It is important to determine what system you currently have, or need, so as not to cause confusion when referencing the owner’s manual.

Product Type:	Salt Chlorinator
Installation Type:	Residential
Control System Type:	System with Generator
Energy Efficient:	Yes
Pool Type:	Above Ground
Application:	Residential
Salt System Type:	Chlorinator
Manufacturer:	Hayward
Gallons:	Up to 18,000 gallons
Warranty:	2-Year
